| 加工定制：是 | 品牌：思普特 | 型号：LM61-MP-406B |
| 类型：高精度土壤水分传感器 | 外形尺寸：500×430×380 mm | 重量：0.2Kg |
| 产品用途：土壤容积含水量 | 规格：LM61-MP-406B |
思普特 高精度土壤水分传感器 型号:LM61-MP-406B
思普特 高精度土壤水分传感器 型号:LM61-MP-406B
思普特 高精度土壤水分传感器 型号:LM61-MP-406B
采用世界***技术的土壤水分传感器,***,可靠,耐用。性能超群,价格合理,***。
产品特点：
1、操作简便,直接连接到手持仪表或数据采集器。
2、环保材料,全密封,可长期埋设在地下任意深度,连续测量。
3、特殊性质土壤及其它被测介质,易于标定。
4、表层土壤湿度,即插即读,配备专用延长工具可测量至80厘米深度。
5、 温室大棚,花卉蔬菜,草地牧场,节水农业,自动控制,湿度探测器。
6、20毫安工作电流,。
技术参数：
测量参数：土壤容积含水量
测量精度：±2%
量 程：0～***（m3/m3）
测量区域：90%的影响在围绕中央探针的直径2.5cm、长为6cm的圆柱体内
稳定时间：通电后约10秒
响应时间：0.5秒内对***的变化有响应
工作电压：7——15VDC
工作电流：常规19mA 21mA
输出信号：0～1V
密封材料：PVC
探针材料：不锈钢
电缆长度：标准长度5m长度100m

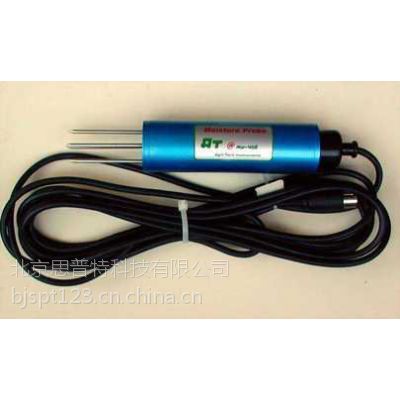

MP-406B Moisture Probe
Product Introduction:
1、The Mp-406B moisture probe adopts the latest technology in the world ,it can be used to measure the soil moisture for scientific research or irrigation management .The Mp-406 Moisture Probe can also be used to measure the moisture content in many materials such as soil , food and materials used in railway and building consturtion.
2、The Mp-406B has a high frequency moisture detector ,which uses the standing wave principle to indicate the ratio of two or more substances forming a body of material ,each substance having a different constant(ka).
3、The material that can be measured by the Mp-406B is often soil ,but can be any composition of non-metallic powdered ,liquid or soild phase substances into which .
Technical Parameters:
Parameters: volumetric soil water content (VSW%)
Accuracy:±2%
Range:0~***(m?/m?)
Region:90% effect in the cylinder around the central probe with a diam eter of 2.5cm and a length of 6cm
Stable Time:About 10 seconds after the electricity
Response Time : Response to *** changes within 0.5 second
Working Voltage :7-15VDC
Working Current:Max :20mA
Output Signal:0~1.1V
Sealing Materials:PVC
Probe materials：Stainless Steel
Cable length:Standard :5m Maximum :100m
